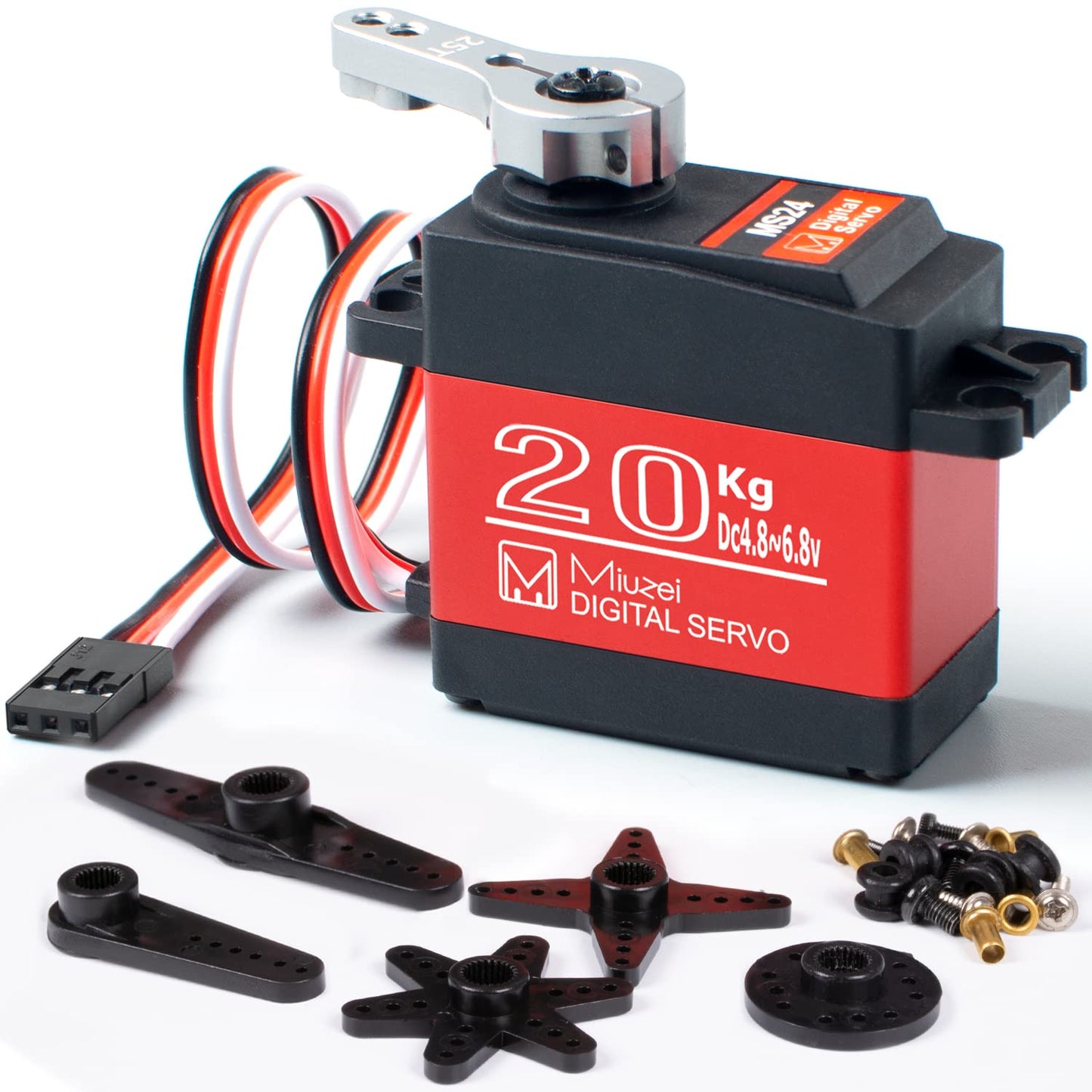

Miuzei 20KG Servo Motor High Torque Digital Servo Metal Waterproof 1/10 Scale Servo for R/C Car Robot, DS3218 Control Angle 270°

Marke: Miuzei

Eigenschaften:

• DS3218 20kg digital servo,accuracy with precision potentiometers, high quality leads and center nicely.
• High torque steering servo for robot arm,boats,vehicles and remote control toys.

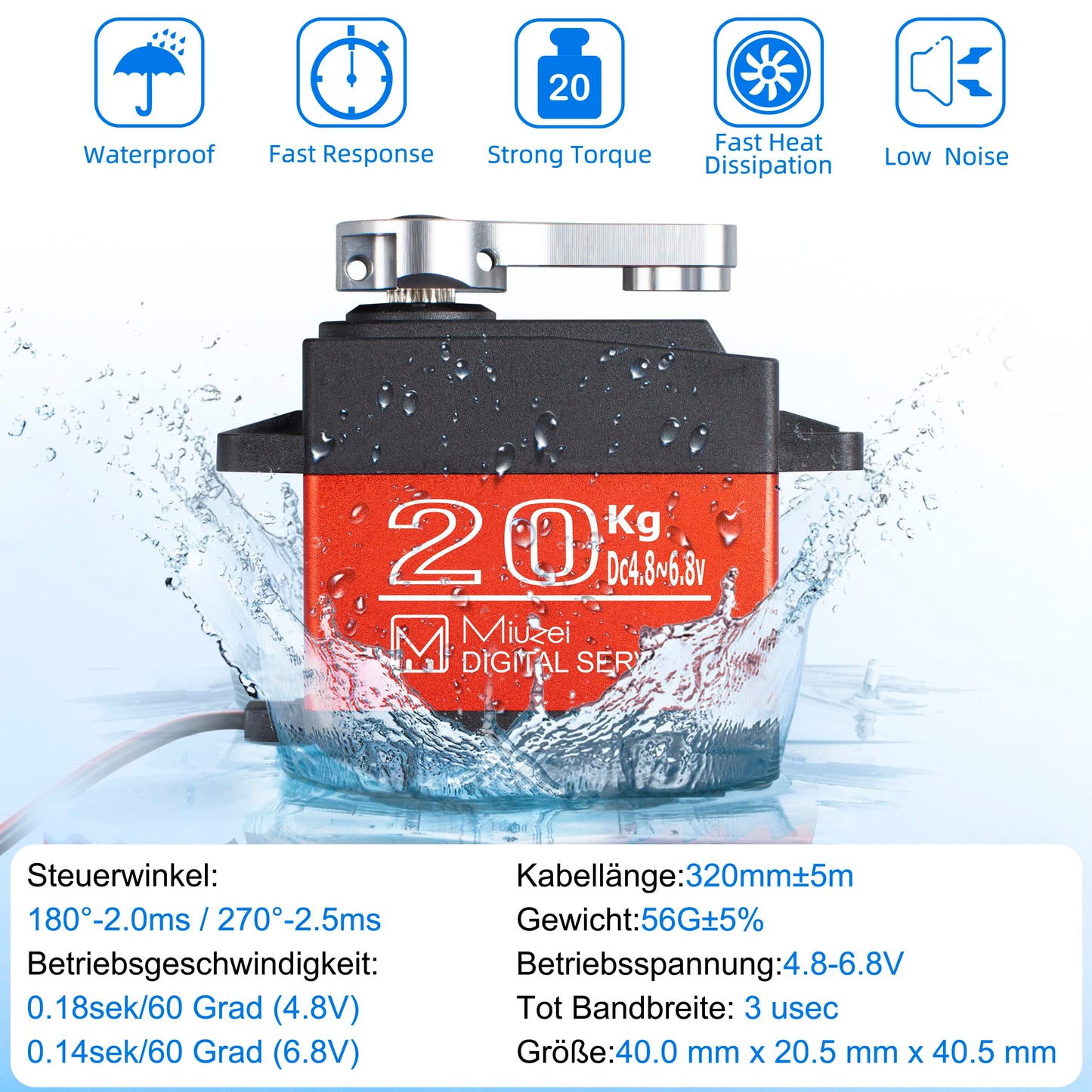

• Size:40*20*40.5mm Weight: 60g Operating voltage range(4.8-6.8V) Dead band width:3 μsec
• Stall torque (at locked):18 kg-cm(5V)/21.5 kg-cm(6.8V) Waterproof performance: IP66
• Please Note: The servo has a pulse width signal of 500 to 2500 μsec; when the input signal is 500usec, the angle is 0 degrees, and at 2500 μsec, the angle is 270 degrees.

Bindung: Spielzeug

Modellnummer: MS24

Artikelnummer: MS24-UF

Einzelheiten: High torque steering servo, commonly use in RC car like climbing cars, robots, mechanical arms,rock crawler vehicles & remote control toys.
270 degree rotation perfect for robot joint activities.


Apply Environmental Condition:
Storage Temperature Range(-30℃～80℃)
Operating Temperature Range(-15℃～70℃)
Operating Voltage Range(4.8-6.8V)


Mechanical Specification:

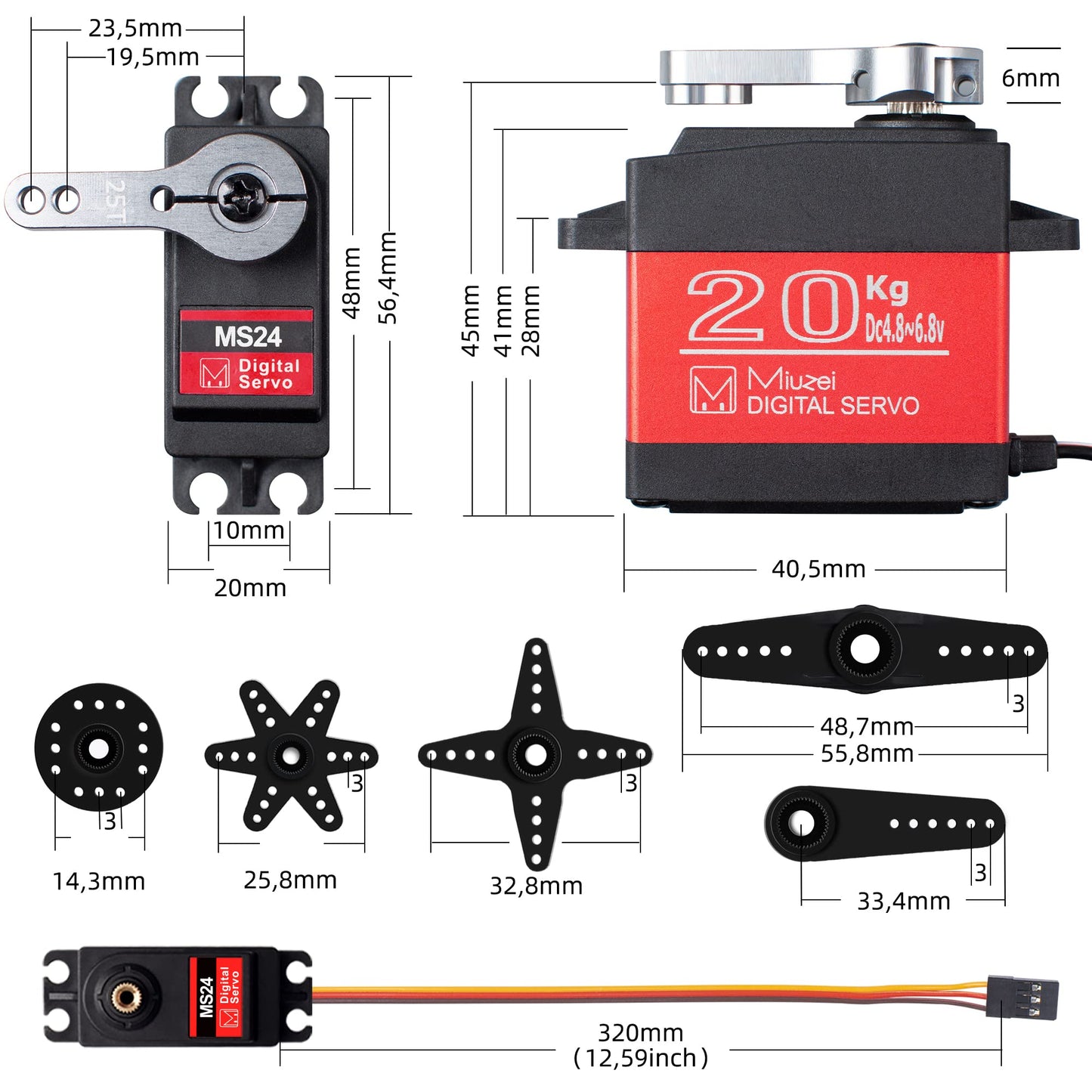

Size:40*20*40.5mm
Weight:60g
Gear ratio:275

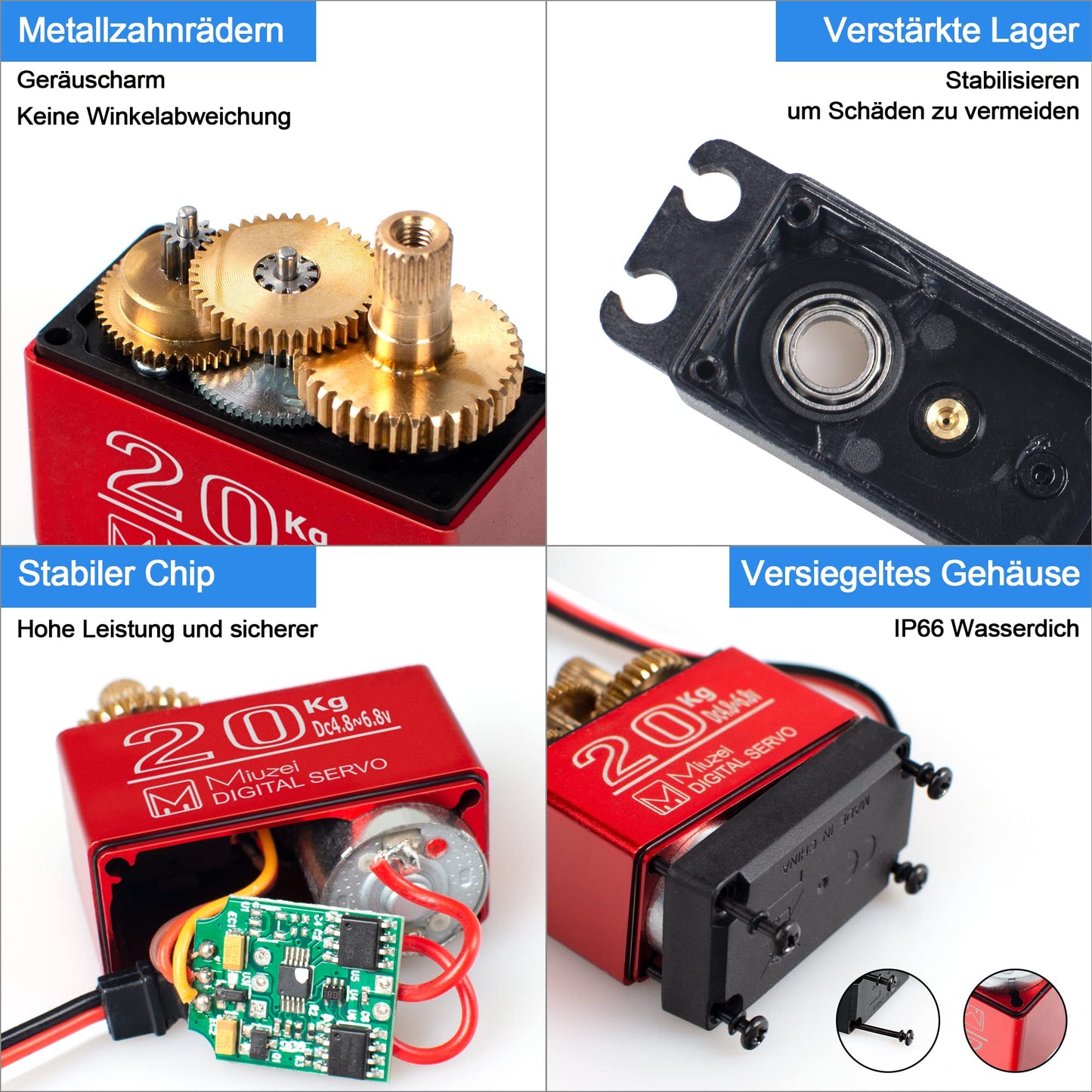

Bearing:Double bearing

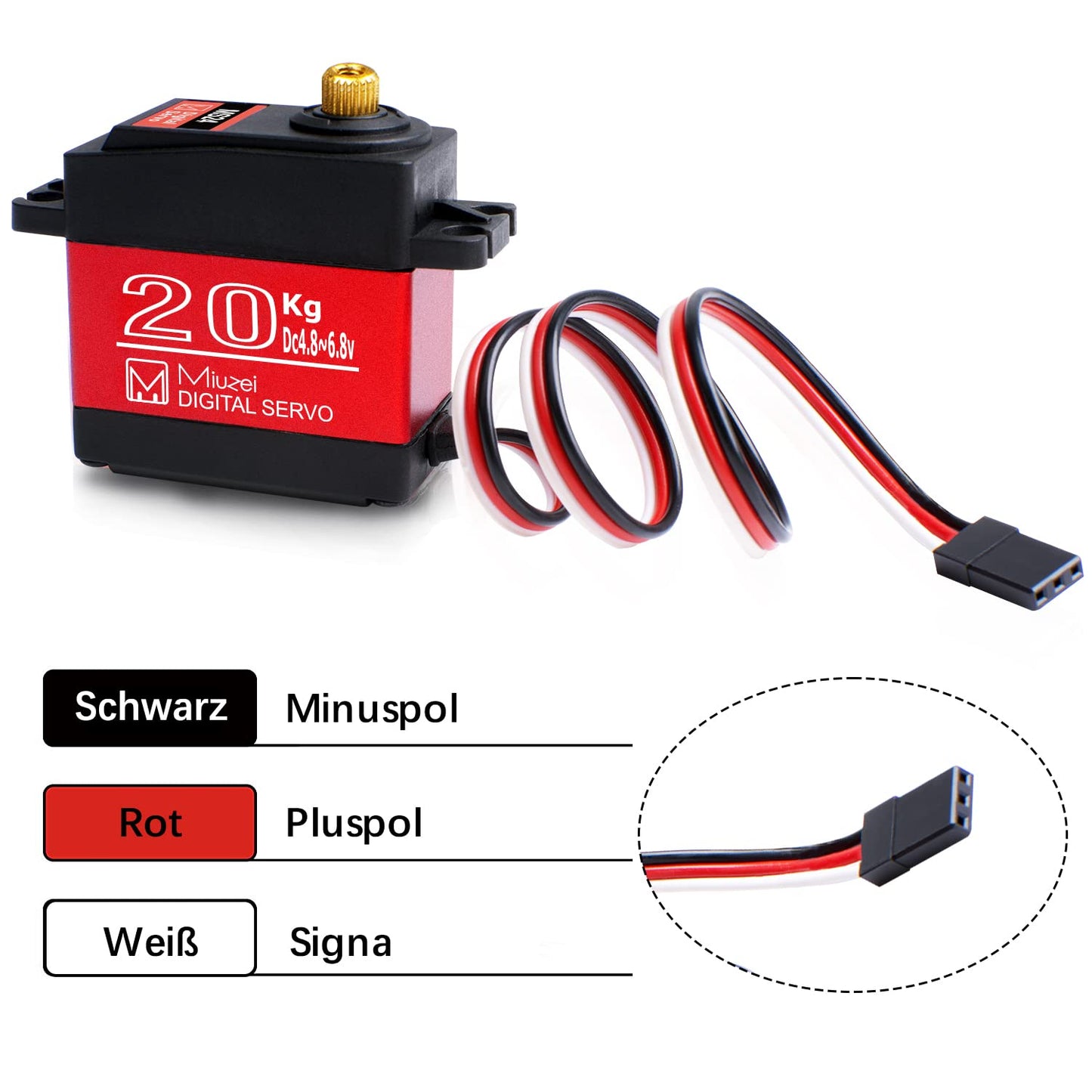

Connector wire:300±5mm
Motor:3-pole
Waterproof performance:IP66


Electrical Specification:
Idle current(at stopped):4mA(5V)/5mA(6.8V)
Operating speed (at no load):0.16 sec/60°(5V)/0.14sec/60°(6.8V)
Stall torque (at locked):18 kg-cm(5V)/21.5 kg-cm(6.8V)
Stall current (at locked):1.8A(5V)/2.2A(6.8V)


Control Specification:
Control System:PWM(Pulse width modification)
Pulse width range:500～2500μsec
Neutral position:1500μsec

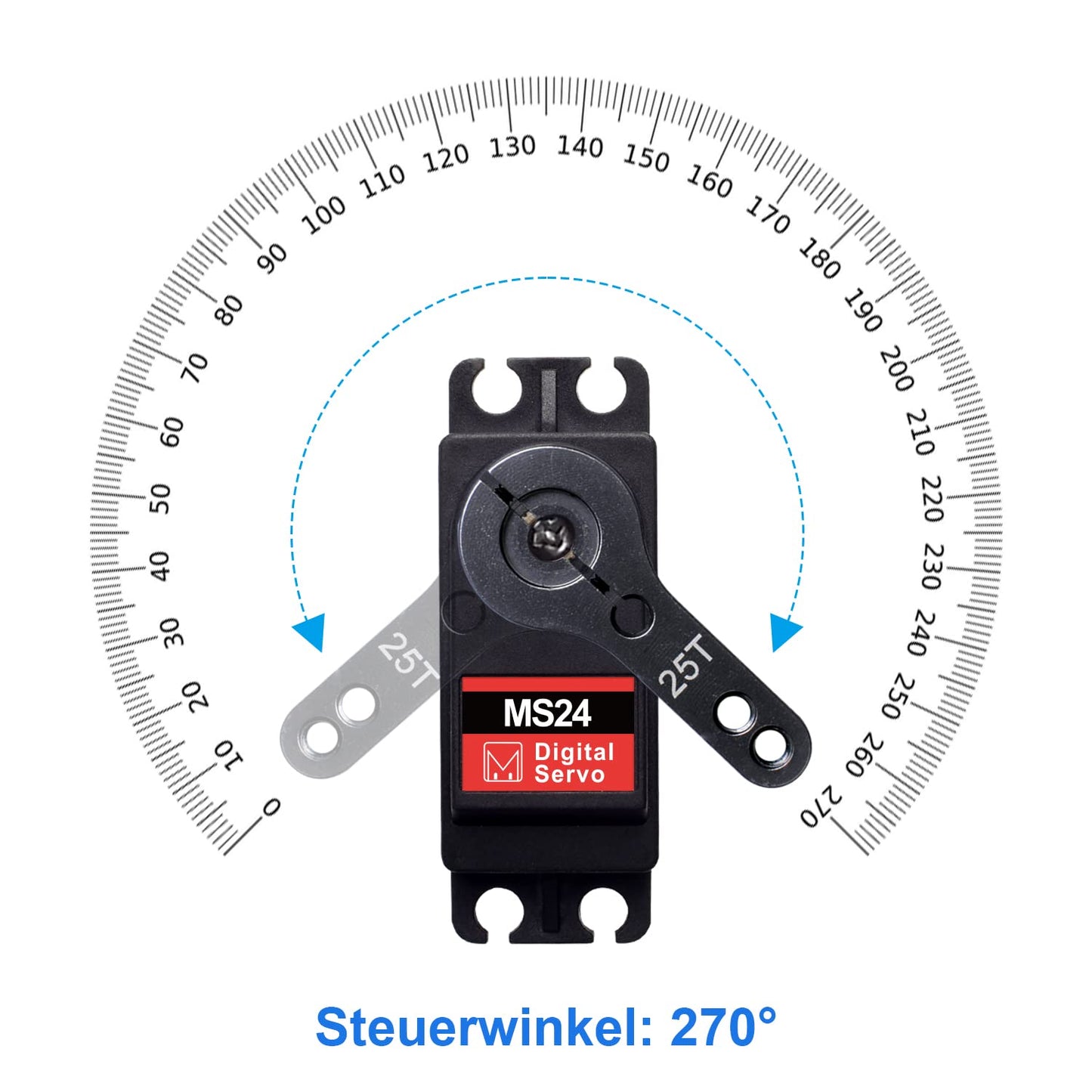

Running degree:180°or 270°(when 500～2500μsec)
Dead band width:3 μsec
Operating frequency:50-330Hz
Rotating direction:Counterclockwise(when 500～2500 μsec)

EAN: 0657390349112

Paketmaße: 4.8 x 4.2 x 0.9 inches
